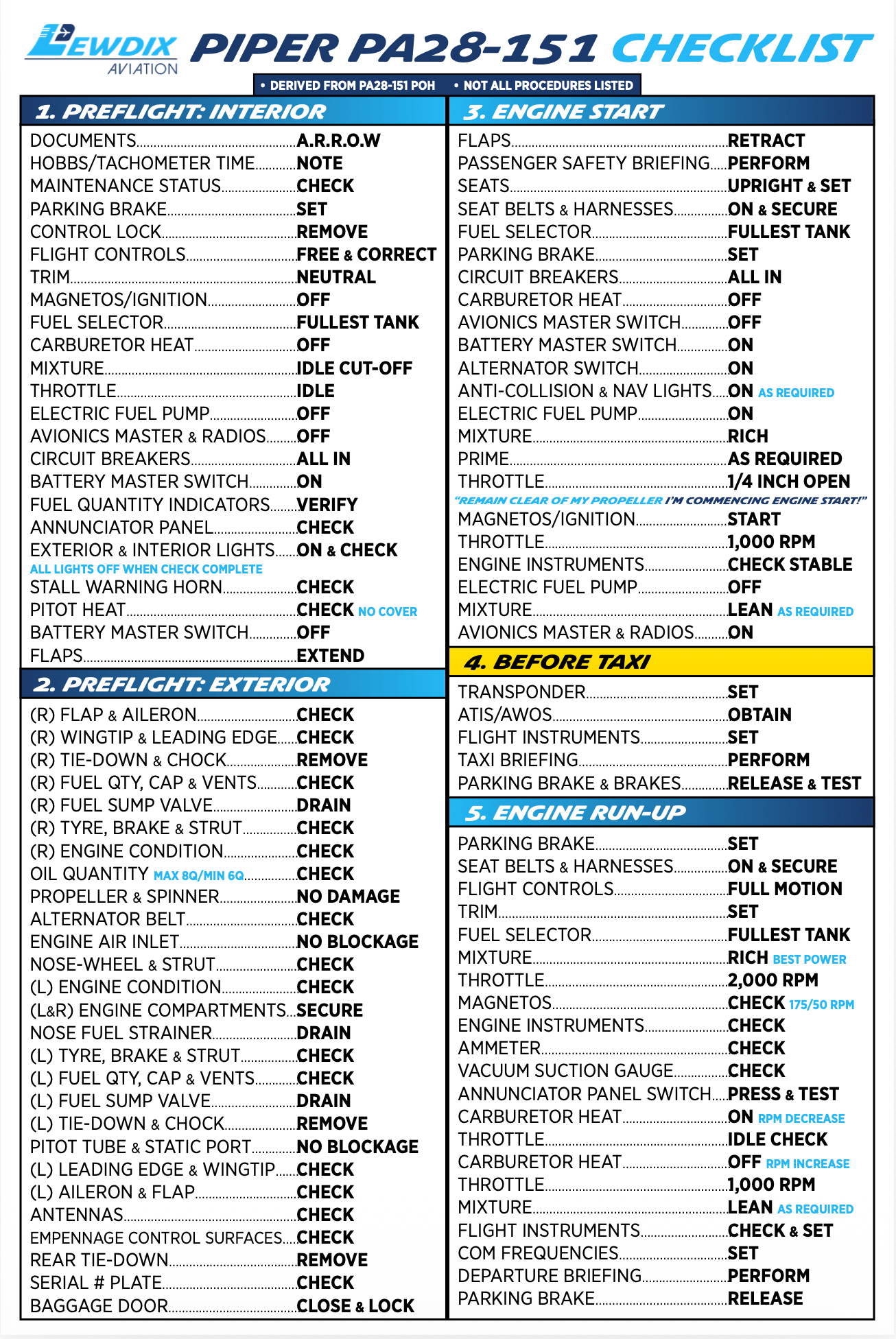

Piper PA28-151 Checklist

PA28-151 Checklist Highlights:

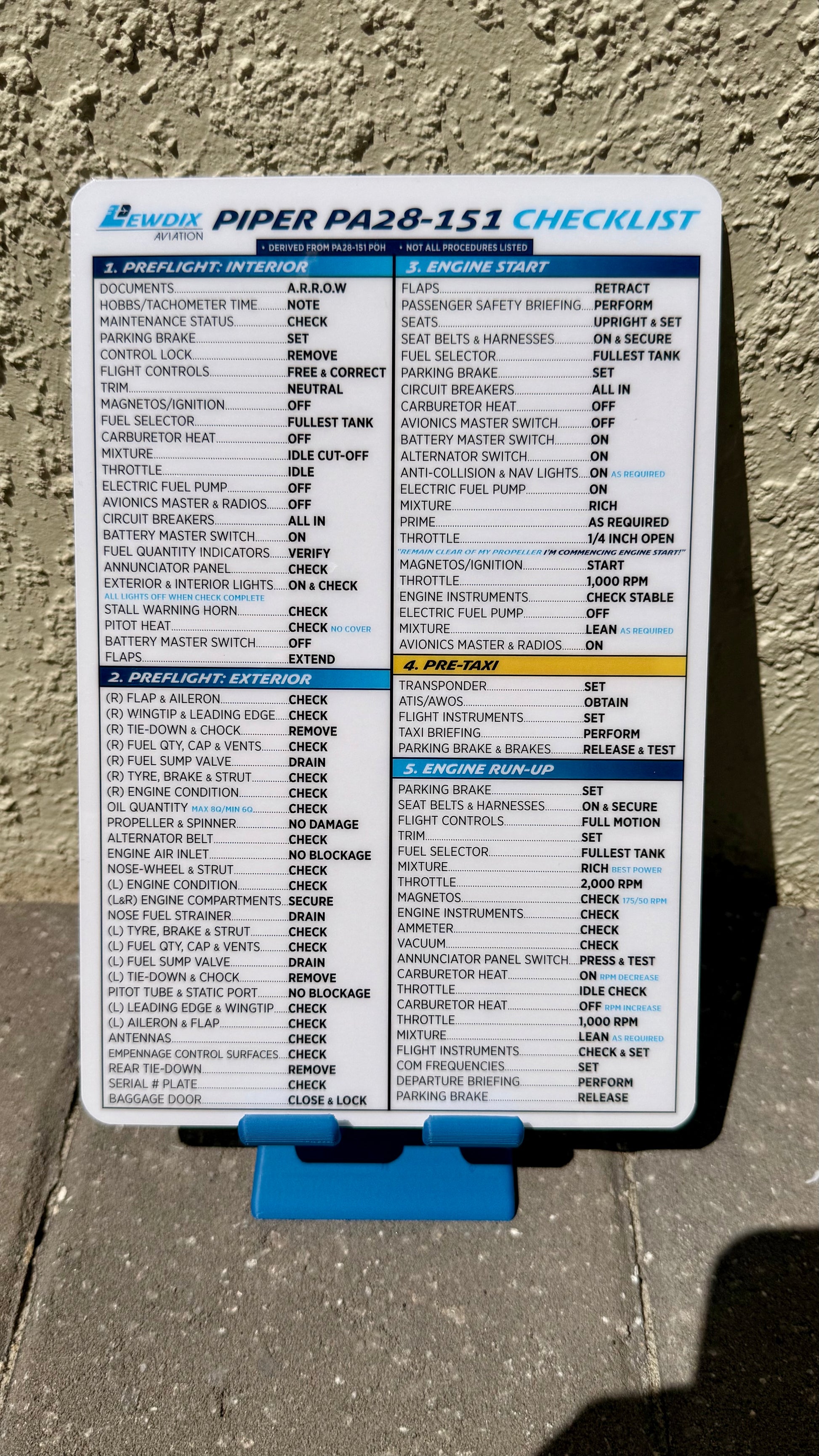

• Sturdy 6x9in laminated card perfectly sized for use in general aviation cockpits
• Easy to follow procedures derived from the PA28-151 POH.
• A flow that works.
• Emergency procedures section (not all procedures listed).
• V-speeds section in MPH & knots.
  • Vr - 64 MPH / 55 KTS
  • Vso - 58 MPH / 50 KTS
  • Vs1 - 65 MPH / 56 KTS
  • Vx - 76 MPH / 66 KTS
  • Vy - 87 MPH / 76 KTS
  • Va max gross - 124 MPH / 108 KTS
  • Vfe - 125 MPH / 109 KTS
  • Vno - 140 MPH / 122 KTS
  • Vne - 176 MPH / 153 KTS
  • Vglide max gross - 85 MPH / 73 KTS

Care Instructions:

Avoid leaving in direct sunlight for extended periods.

Avoid hitting sides or corners of the checklist to avoid damage.

Avoid wetting the sides of the checklist and store in a dry location.

Note:

This checklist is optimized for aircraft with standard instrumentation (not G1000).

Checklists are optimized for use in the USA.

Disclaimer:

Permission for the use of this checklist is granted only to the purchaser.

Redistribution of this checklist is prohibited.

The purchaser & user of this checklist agrees that there is no guarantee that the information on it is correct and may not be suitable for use with their aircraft.

LewDix Aviation bears no liability for the use of this checklist.

*Ensure your shipping address is full and correct. No refunds or replacement products will be provided if shipment is sent to an incorrect address provided by the customer at checkout.

*Expect a minimum of 3 days after ordering before receiving shipping confirmation.

*Expect delays for orders outside the USA.

*ALL SALES ARE FINAL. NO RETURNS.
